DrGem GXR-S
8500C-202
Product information
High Frequency Digital Radiography System
Reviews
4 out of 5 stars
Description
MD-8500C 202 is a high frequency flat-panel digital X-ray radiography system, suitable for radiology department, orthopedics, ward, emergency room, operating room, ICU and other departments. With flexible movement, easy operation, high efficiency, to meet the radiography for all of human body's parts, such as head, limbs, chest, spine, lumbar vertebrae, abdomen, etc.
Additional details
- Advanced 40kHz high frequency high voltage type generator, realize 1ms instant exposure, high performance.
- Three exposure method free change: KV, m As two adjustment, KV, mAs three adjustment, to satisfy different habit of different doctors.
- Rotate double anode 0.6/1.3, with high heat capacity of 107KHU
- Digital micro-processed closed loop control and malfunction alarming system to reduce the dose of X-ray, protect the patients and doctors very well.
- LCD touch screen, beautiful appearance and convenience to operate.、
- Apply with domestic brand Flat panel detector, which could give perfect digital images directly.
- 3K x 3K Acquisition matrix, 143um pixels size, and 3.7Lp/mm ultimate spatial resolution, with DQE values ≥70%
- 17 x 17〞Large acquisition area and with the non-center processing technology, no matter the center and border, the quality of the image is the same.
- The detector could be rotated ±45 degree along the axis direction, to satisfy the different photograph requirement of every body parts, such as Ankle joint, lateral spine
- The detector has the self-protection function. It can stop to move when it detect the distance in front of the barrier.
Additional More details
- Digital Working Station:
- Case registration: Auto registration, equipped with Dicom Worklist SCU. To simplify the input process for doctors, greatly reduce work and greatly improve the working efficiency
- Image Acquisition: Automatic window adjustment, Automatic cropping, Automatic transmit.
- Image Processing: Tissue equilibrium, W/L adjustment, Gamma correction, interest district, reversed phase, noise reduction, smooth, sharpen, pseudo color, edge extraction, shadow compensation, filter nuclear, single window, dual-window, four windows, movement, right rotated 90°,left rotated 90°,level mirror image, vertical mirror image, magnifying glass, image zooming, reset, layer information, label character, drawing label, length measurement, angle measurement, rectangular length, rectangular area, elliptic length, elliptic area.
- Dicom Image Transmit, Dicom Image Storage, Dicom Image viewing, Dicom Image printing.
- Convenient to connected to the PACS system
- Digital Working Station:
- Case registration: Auto registration, equipped with Dicom Worklist SCU. To simplify the input process for doctors, greatly reduce work and greatly improve the working efficiency
- Image Acquisition: Automatic window adjustment, Automatic cropping, Automatic transmit.
- Image Processing: Tissue equilibrium, W/L adjustment, Gamma correction, interest district, reversed phase, noise reduction, smooth, sharpen, pseudo color, edge extraction, shadow compensation, filter nuclear, single window, dual-window, four windows, movement, right rotated 90°,left rotated 90°,level mirror image, vertical mirror image, magnifying glass, image zooming, reset, layer information, label character, drawing label, length measurement, angle measurement, rectangular length, rectangular area, elliptic length, elliptic area.
- Dicom Image Transmit, Dicom Image Storage, Dicom Image viewing, Dicom Image printing.
- Convenient to connected to the PACS system
- Mechanical Movement:

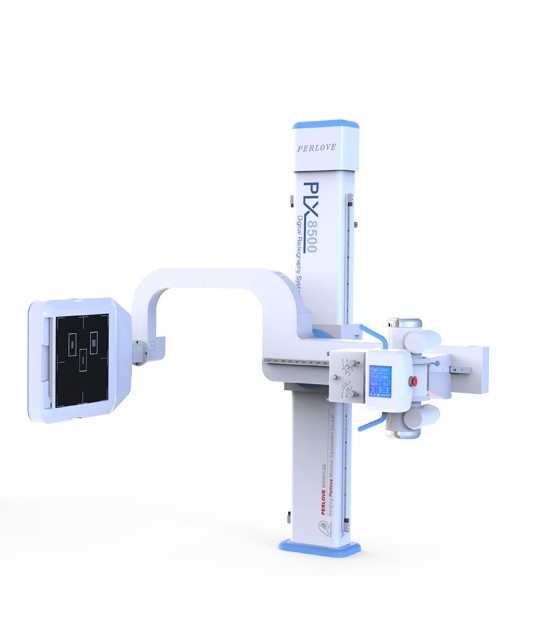

- The self-designed and manufactured electric U-arm mainframe can move up and down, and rotate in a wide range, which can satisfy the requirements of multi-site photography.
- Adopting original Italian geared motor, the features are reliable performance, lower noise, longer service life.
- The unique three-dimension and three independent control system, can achieve one-key reposition.
- For Close-distance Range, the operator can operate the machine by the film key on the combined generators and X-ray tube; For Middle distance Range, can operate by the hand controller; For Long-distance Range can operate by the touchable LCD screen outside the operating room.
Additional More details
- Power Output: 55kW/65kW
- Inverter Frequency: 60kHz
- Tube Voltage: 40-150KV
- Power Supply: 380V, 50/60Hz
- Dual-focus: Small Focus:0.6 Large Focus:1.2
- Digital Detector: Flat Panel/CCD
- Standard Configurations:
- New design U arm frame: 1 unit
- High voltage high generator: 1 unit
- Digital workstatio:n 1 set
- 19" LCD display: 1 unit
- Electric cabnit: 1 unit
- Collimator: 1 unit
- 17”*17” flat panel detector: 1 unit
- X ray tube assembly: 1 unit
