Product information

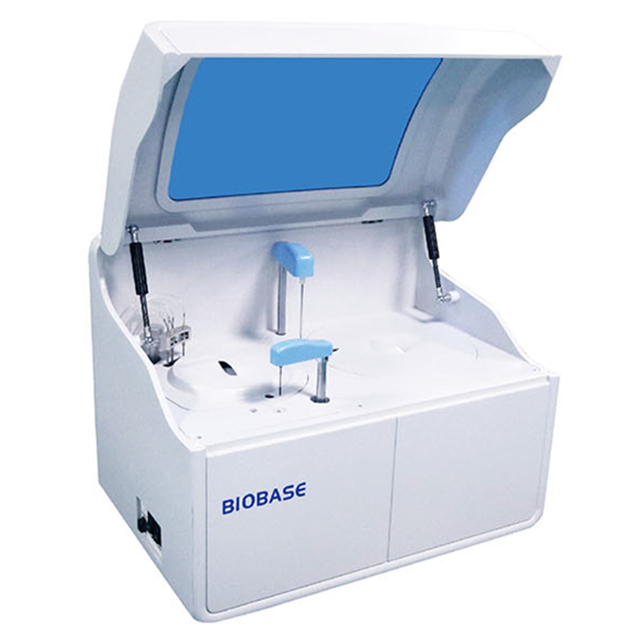

Auto Chemistry Analyzer

Reviews

4 out of 5 stars

Description

It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.

Color

Additional details

  • Model: BK-200
  • Overall: Performance:
  • - Throughput: 200 Tests/hou
  • - Analysis Method: End-point, Fixed-time, Rate(Kinetic
  • - Certificates: CE, FDA, ISO9001, ISO14001, ISO1348
  • Sample & Reagent System:

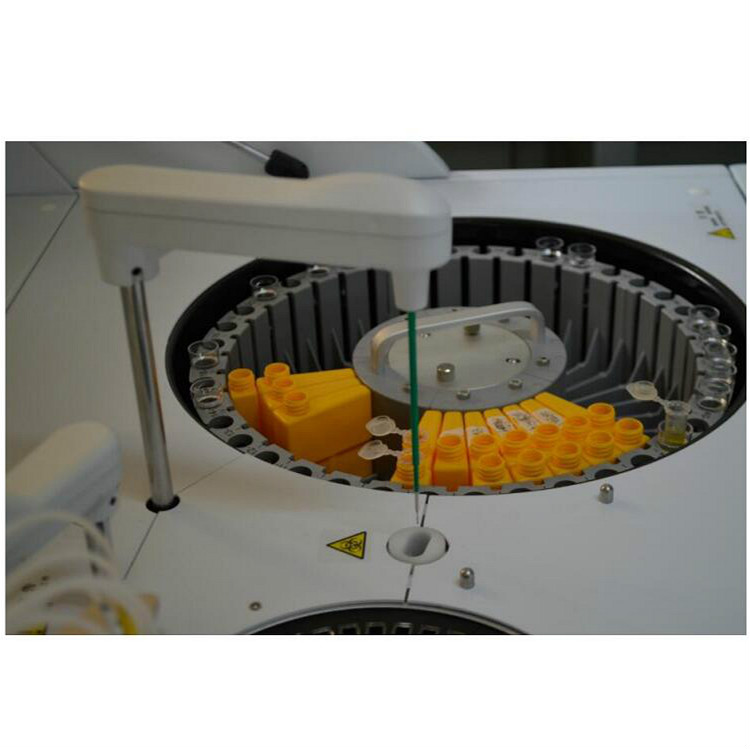

  • - Sample Positions: 37 sample positions
  • - Reagent Position: 28 reagent positions
  • - Sample Volume: 2-7µl
  • - Reagent Volume: 20-350µl

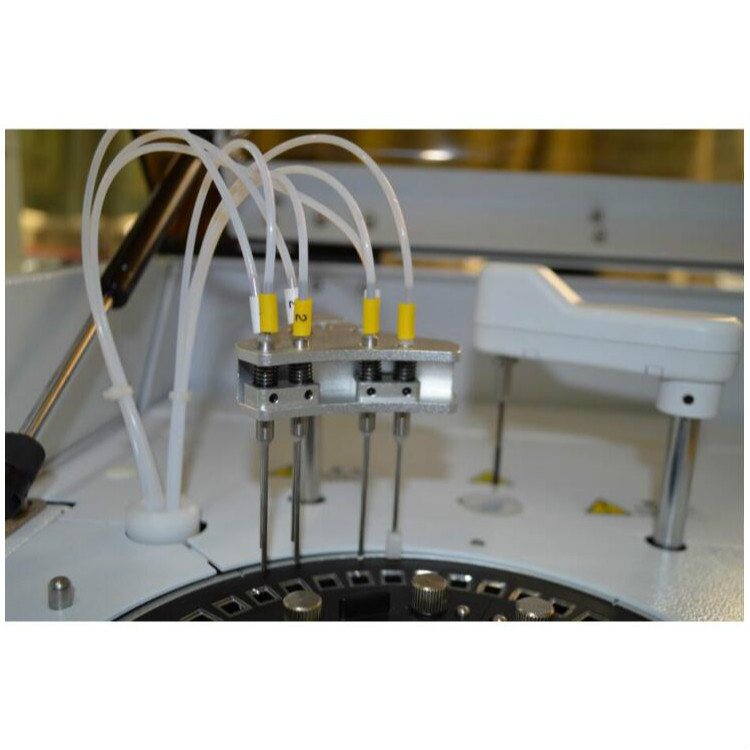

  • - Probe: Teflon coating, with anti-collision function, liquid level detection function
  • - Probe Washing: Automatic washing interior and exterior
  • - Reagent Cooling: Refrigerated tray with independent switch
  • Features:
  • 1. 37 Sample positions.
  • 2. 28 Reagent positions.
  • 3. 48 Reaction cuvettes.
  • 4. 200 Tests per hour.
  • 5. Probe anti-collision function,liquid level dectection function.

Additional More details

  • All-in-one cartridge format Just load sample & press start

Additional More details

  • Reaction System:
  • - Temperature Control: 37+0.2℃, real-time monitoring
  • - Cuvettes: 48 reusable cuvettes,optical length 6mm
  • - Mixer Probe: Independent stirring
  • - Washing: Automatic cuvettes washing
  • - STAT function: YES
  • Optical System:
  • - Light Source: 6V/10W halogen lamp
  • - Spectrophotometry: Post-spectral spectrophotometry
  • - Wavelength: 340,405,450,480,505,546,570,600,,630,700,750,800nm
  • - Absorbance: 0-3.0Abs
  • Calibration & QC:
  • - Calibration: Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
  • - Quality Control: Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
  • Data Management:
  • - Software: Windows 7/8/10 , 32or 64bit
  • - LIS System: Bi-direction,support HL7 protocol
  • - Interface: LAN port access
  • - Printer: External,multiple reporting mode available
  • Working Conditions:
  • - Power Supply: AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
  • - Temperature: 15-30℃
  • - Water Consumption: Deionized water:<5L/H
  • - Humidity: 40-85%
  • Size & Weight:
  • - External Size (W*D*H): 625*425*460mm
  • - Net Weight: 36kg
  • - Package Size (W*D*H): 728*530*854mm
  • - Gross Weight: 55kg
