Digital Ultrasound
F5 Portable Ultrasound
Product information
Digital Ultrasound Scanner
Reviews
4 out of 5 stars
Description

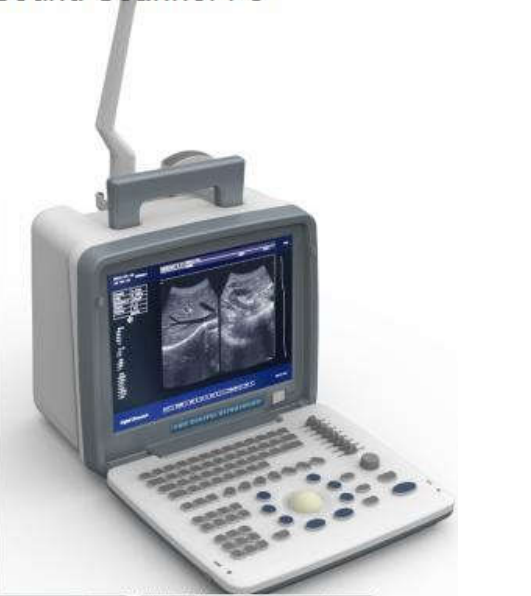

12 inch LED Full Digital Ultrasound Scanner F5
Additional details
- Full Digital imaging technology
- Display: 12inch TFT LED Display
- 2 Probe connectors, Probe Automatic Identification
- SVGA/PAL Video outputs support connections to video image recorder, image
- workstation, Video printer
- USB Port supports storing images,Upgrader and expandable printer function
- Intelligent Fluorescence Trackball
- 8-segments TGC, overall Gain Control
- Report Page is generated Automatically
Additional More details
- Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5MHz/7.0 MHz/7.5MHz can match high frequency probe.
- Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc.
- Annotation function hospital name, patient’s name, age and gender
- Kinds of body marks (with probe’s position)
- Full-screen character annotation
- Real-time clock display
- Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode
- Ethernet Switch
Additional More details
- Display modes:B, B/B, 4B, B+M, M
- Image multiplying factor
- 3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x 1.5, x1 .8, x2.0 (sixmodes) x0.8, x1.0 (display penetration depth)
- E-zoom: magnify 2 times of real time image
- Dynamic range: 0~120dB adjustable.
- Focus position: dynamic electron focusing.
- Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
- Gray scale: 256 levels
- Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5MHz/7.0 MHz/7.5MHz can match high frequency probe.
- Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc
