ECG 1200G

ECG 1200G TouchScreen 12-channel ECG machine

Product information

Electrograph

Reviews

4 out of 5 stars

Description

ECG1200G twelve channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simult aneously and prints out the ECG waveforms with thermal printing system.

Color

Additional details

  • Recording and displaying ECG waveforms in auto/manual mode
  • Auto-measuring and auto-diagnosing the ECG wave parameters
  • Prompting the state of lead off and paper lack
  • Switching several kinds of interface languages
  • Managing the case database.

Additional More details

  • Built-in MSF, can store more than 1000 cases, convenient for doctor case review and information statistics
  • System provides Chinese/English/Spanish/Turkish/German/Portuguese/Kazakhstan/Russian operation interface and can print out such language reports of the above
  • System provides multiply printing speeds, including 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, and abstract conclusion graph printing

Additional More details

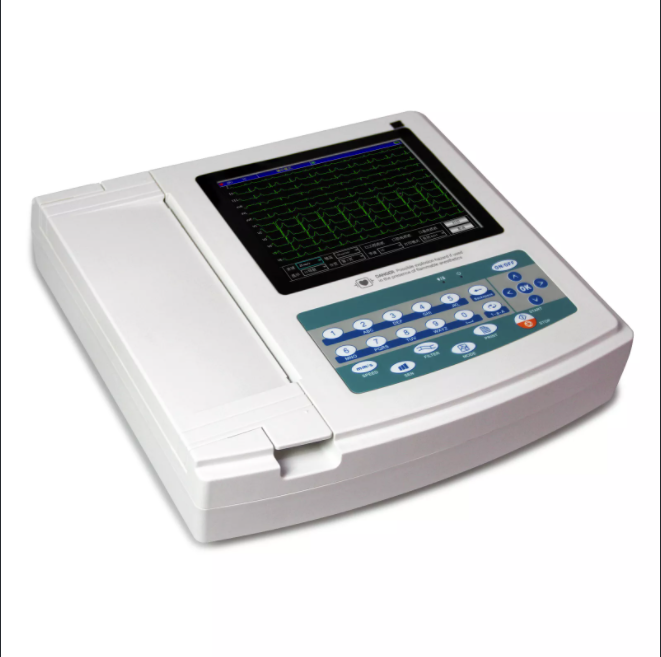

  • 8"TFT Color LCD shows the working status and ECG waveform. Check the waveform before printing to save record paper
  • 12 Leads ECG simultaneous gather, digital signal processing, to get the ECG waveforms of higher quality through the AC, DFT and EMG filtering of the ECG signals
  • Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc, to be easy for contrast diagnosis
  • Multiply printing modes and formats, including 12*1, 6*2+1(rhythm lead), 6*2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual and freeze, etc. The length of printed wave can be adjusted and simultaneity the function of periodic printing is offered to satisfy different applications
  • The instrument has the functions of auto-analysis and auto-diagnosis of regular ECG waveform parameters, provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc and auto-diagnosis conclusion to reduce doctor burden
  • AC/DC power supply. Built-in rechargeable lithium polymer battery. At the best DC state, it can standby for 10 hours, print less than 3 hours, and print 300 pieces of ECG waveform to satisfy the need of visiting patients and physical examination
  • ENVIROMETN OPERATING CONDITIONS
  • a) Environment temperature: +5℃~+35℃
  • b) Relative humidity: ≤80%
  • c) Power supply: AC:100V~240V, 50/60Hz DC:18V, 3500 mAh rechargeable lithium battery
  • Atmospheric pressure: 86kPa~106kPa
  • TRANSPORTATION AND STORAGE
  • a) Environment temperature: -40℃~55℃
  • b) Relative humidity: ≤95%
  • c) Atmospheric pressure: 50kPa~106kPa
  • Input way: Floating and defibrillation protection
  • Sampling precision: 12 bits
  • Lead: Standard 12 leads(model:BIP0057)
  • Patient leak current: <10μA
  • Input impedance: ≥50MΩ
  • Frequency response: 0.05Hz~150Hz(-3dB~+0.4dB)
  • Time constant: Time constant≥3.2s
  • CMRR: >60dB, >100dB( Adding filter)
  • EMG filter - 25Hz/35Hz (-3dB)
  • AC filter - 50Hz/60Hz (≥20dB) Recording

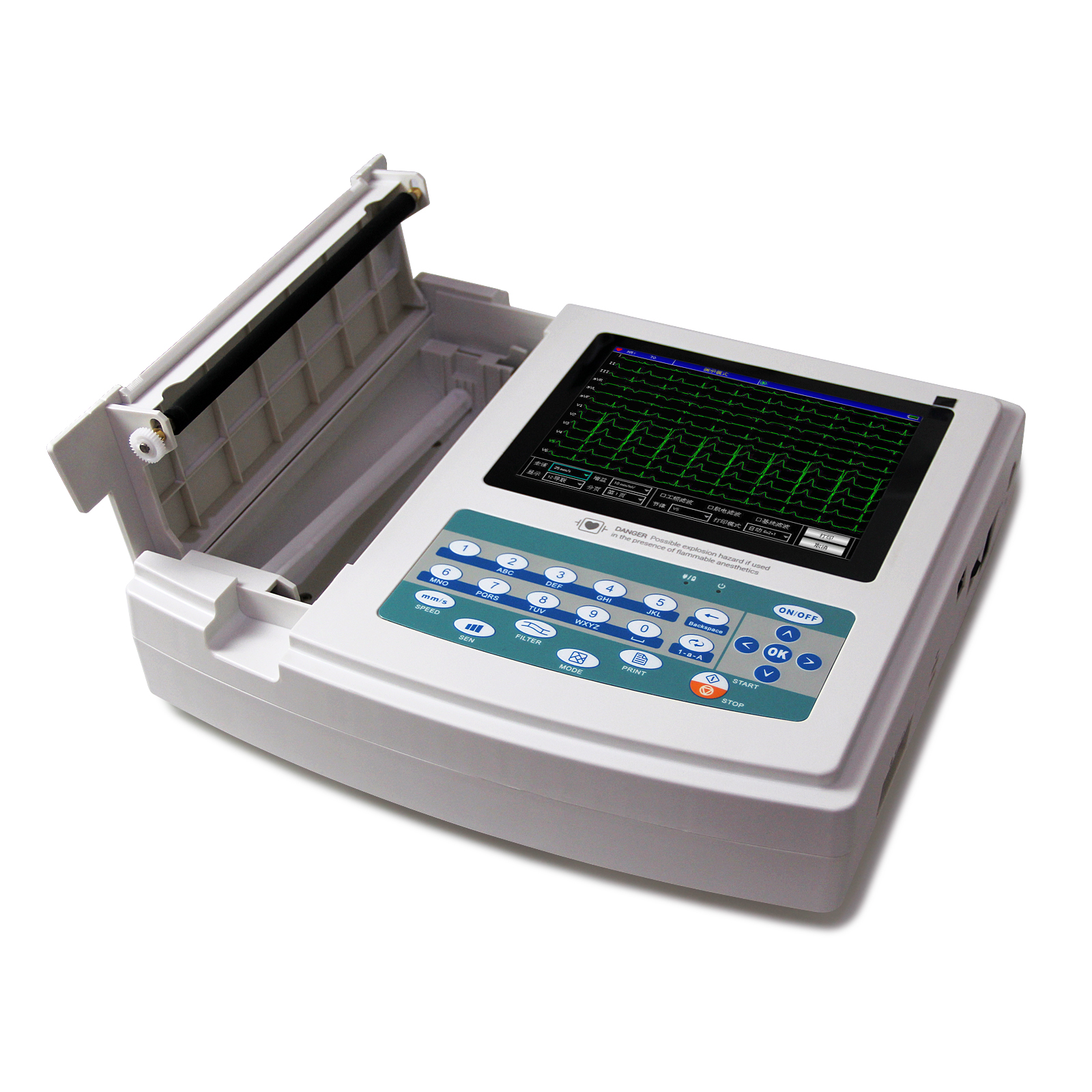

  • Printing way: Thermal printing system
  • Specification of recording paper: 210mm(W)*20m(L) high-speed thermal paper
  • Auto record: 25mm/s, 50mm/s, error:±5%
  • Rhythm record: 25mm/s, 50mm/s, error:±5%
  • Manual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5%
  • Sensitivity selections: 2.5,5,10,20,40mm/mV, error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV
