Product information

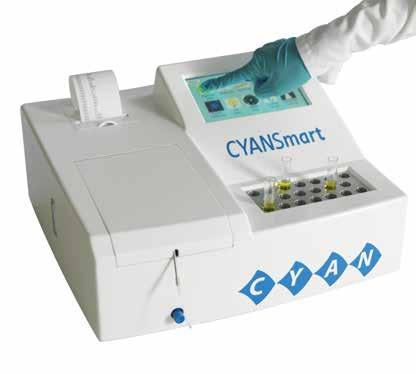

Semi-Automatic Biochemistry Analyzer
Reviews
4 out of 5 stars
Description
The CYANSmart is an an easy-to-operate semi-automatic biochemistry analyzer. This new in vitro diagnostic instrument is designed to have powerful features in a compact, independent unit.
Additional details
- Minimum reaction volume of 500 µl means decreased costs per test
- Limited consumables required
- On-board printer for printing automatically or on request printing
- Seven wavelengths (340, 405, 492, 510, 546, 578, and 620 nm filters) cover all clinical diagnostic applications
- Easy tracking of all the results from each patient by a unique identifier
- All Cypress Diagnostics biochemistry reagents are preprogrammed on delivery
- Clear reporting with patient overview with flags and reference ranges
- Easier reporting and result sharing (email & network printing)
Additional More details
- Cypress Diagnostics provides the tools and solutions that let clinical laboratories worldwide deliver clear and precise diagnostic results.
Additional More details
- Cost savings:
- Minimum reaction volume of 500 µl means decreased costs per test
- Limited consumables required
- Extra items included on delivery (two fuses, five paper rolls, a spare lamp, and pump tube)
- Integrated incubator, printer, pump, and flow cell
- Long life lamp, further extended by power saving / standby mode
- Robustness of the analyzer with minimal daily maintenance
- Analyzer guides the user and so reduces mistakes
- Flexibility:
- On-board printer for printing automatically or on request printing
- Seven wavelengths (340, 405, 492, 510, 546, 578, and 620 nm filters) cover all clinical diagnostic applications
- Five calculation methods (absorbance, endpoint, two-point, kinetic, bichromatic) and three calibration methods (factor, calibrator, and multi-point calibration) provide plenty processing options with one system
- Three blank options (sample blank, reagent blank, and water) provide background correction of the reagent and sample coloration
- Convenience:
- Easy tracking of all the results from each patient by a unique identifier
- All Cypress Diagnostics biochemistry reagents are preprogrammed on delivery
- 180 open channels are programmable to allow for other user-defined tests
- Memory for up to 6000 sample results
- Large font size, easily legible and read with little effort
- LCD touch screen with virtual alphanumeric keyboard
- Multilingual capability
- Minimal daily maintenance
- Desktop Software:
- Clear reporting with patient overview with flags and reference ranges
- Easier reporting and result sharing (email & network printing)
- Elimination of transcription errors (no more manual data entry)
- Data back-up
- Convenient upgrade of the methods by quick upload
- Optical system:
- Flow cell: 32 µl, 10 mm light path
- Min. reaction volume: 500 µl per test
- Halogen lamp 6V/10W
- Photo detector: Silicon based (range 300 – 900 nm)
- Measurement range: 0,000 – 3,500 Abs
- Wavelength: 340 – 620 nm
- Wavelength selection: Automatic via 7 interference filters: 340, 405, 492, 510, 546, 578 & 620 nm Flow cell
- 25 °C, 30 °C, 37 °C, ambient temperature
- Peltier element
- Thermostatic control: PID controlled, ±0,5 °C
- 10 mm
- Incubator
- 20 places with 14 mm diameter
- 37 °C
- Thermostatic control: PID controlled, ± 1 °C
- Display:
- Back-illuminated LCD
- Touchscreen calibration possible
- 800 x 480 pixels (screen size: 7 inch)
- Printer
- Automatic or on-demand printing
- Built-in thermal printer
- 24 characters per line
- Prints graphs
- Power supply
- AC 110/220 V - 50/60 Hz
- Automatic voltage and frequency switch
- Grounding required
- Power: 200 VA, reduced to 140 VA in standby mode
- Power save / Standby mode
- Software:
- Unique 16 digit patient ID
- Memory: 180 test methods and 6000 sample test results
- Cypress Diagnostics methods preprogrammed on delivery
- Languages: English, French, Spanish
- QC: 2 controls programmable plus a separate QC results menu with (printable) graphs
- Calculation methods: absorbance, endpoint, two-point, kinetic, bichromatic
- Calibration methods: factor, calibrator and multi-point calibration
- Blank options: sample blank, reagent blank and water
- Incubation time: 0 - 999 seconds
- Reading time: 3 - 999 seconds
- Weight and dimensions:
- Instrument: 9 kg, 20 x 43,5 x 41,5 cm (H x W x L)
- Environmental requirements:
- Ambient temperature: 15 °C - 30 °C
- Relative humidity: 30 % - 70 %
